About this item

• New Design: Features separated running light display and stop turn light display by using halo glow strip, add on unique outlook and differences. Also, each light uses more led chips than the classic one, giving more brightness and reliable visibility for safety. 100% DOT compliant.
• 7 Full Functions: Combined 7 full functions of stop turn tail light, side marker, side reflector, rear reflector, and license plate light. Fit most 12V DC vehicles within 80 inches, like trailers, boats, trucks, RV, Marine, Pickups, campers, tractors, buses, lorry, vans, caravans, snowmobiles
• IP68 Submersible: LEDs and circuit boards inside are fully waterproof and sealed to work underwater without electric short risk. Light housing also features water drainage for added protection

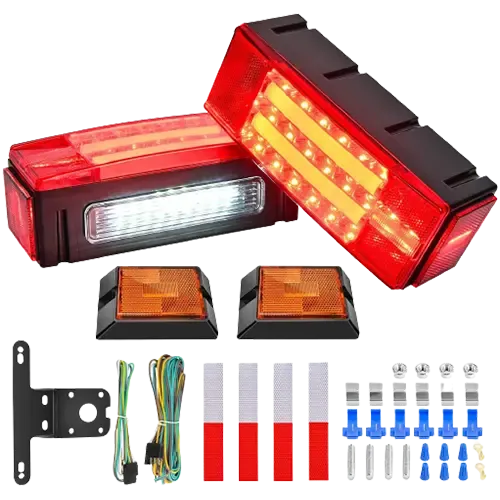

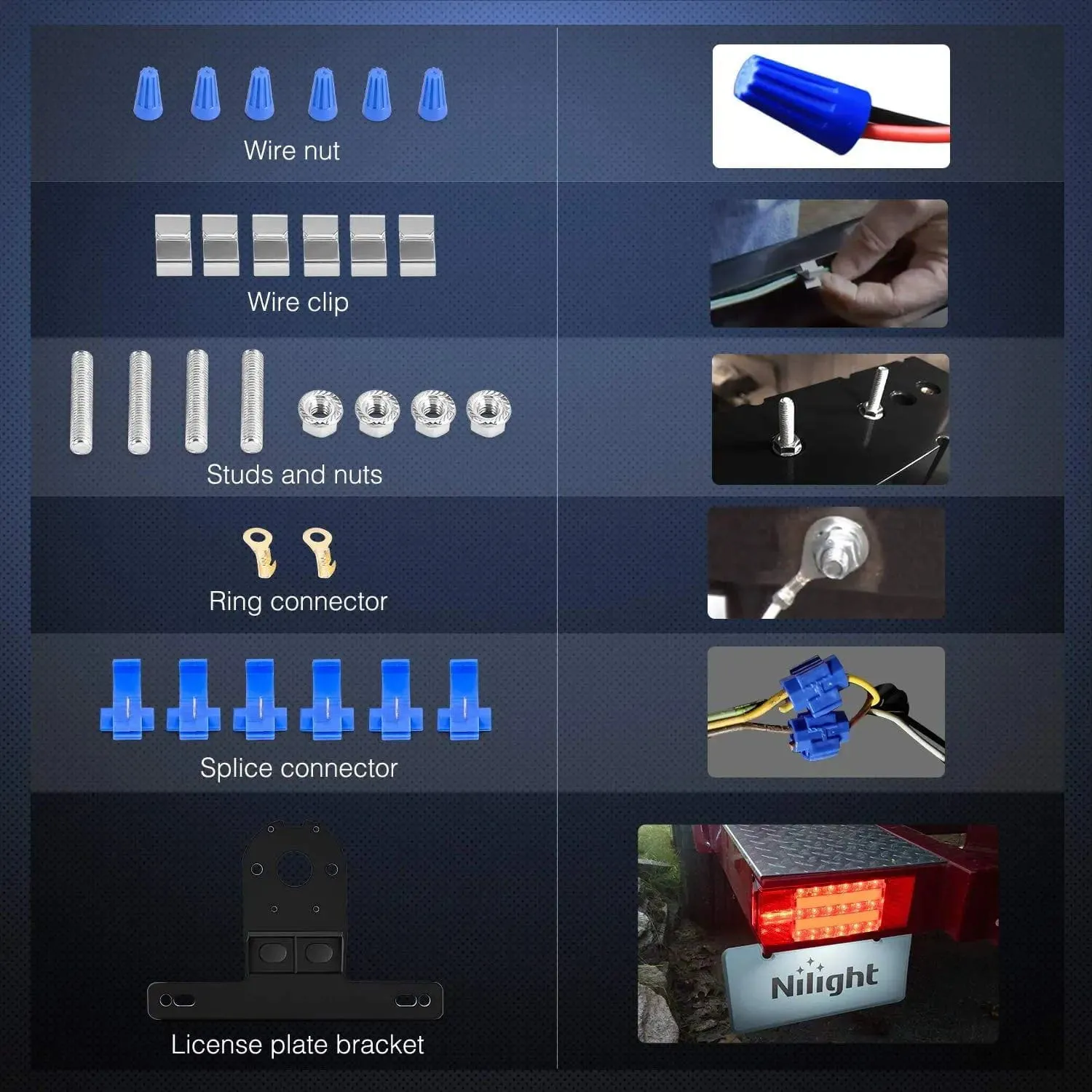

• All-in-one kit: Comes with everything for a straight-forward installation, including square trailer lights, amber clearance light, license plate bracket, trailer wiring harness, reflective stickers, and different types of mounting hardware for handy use

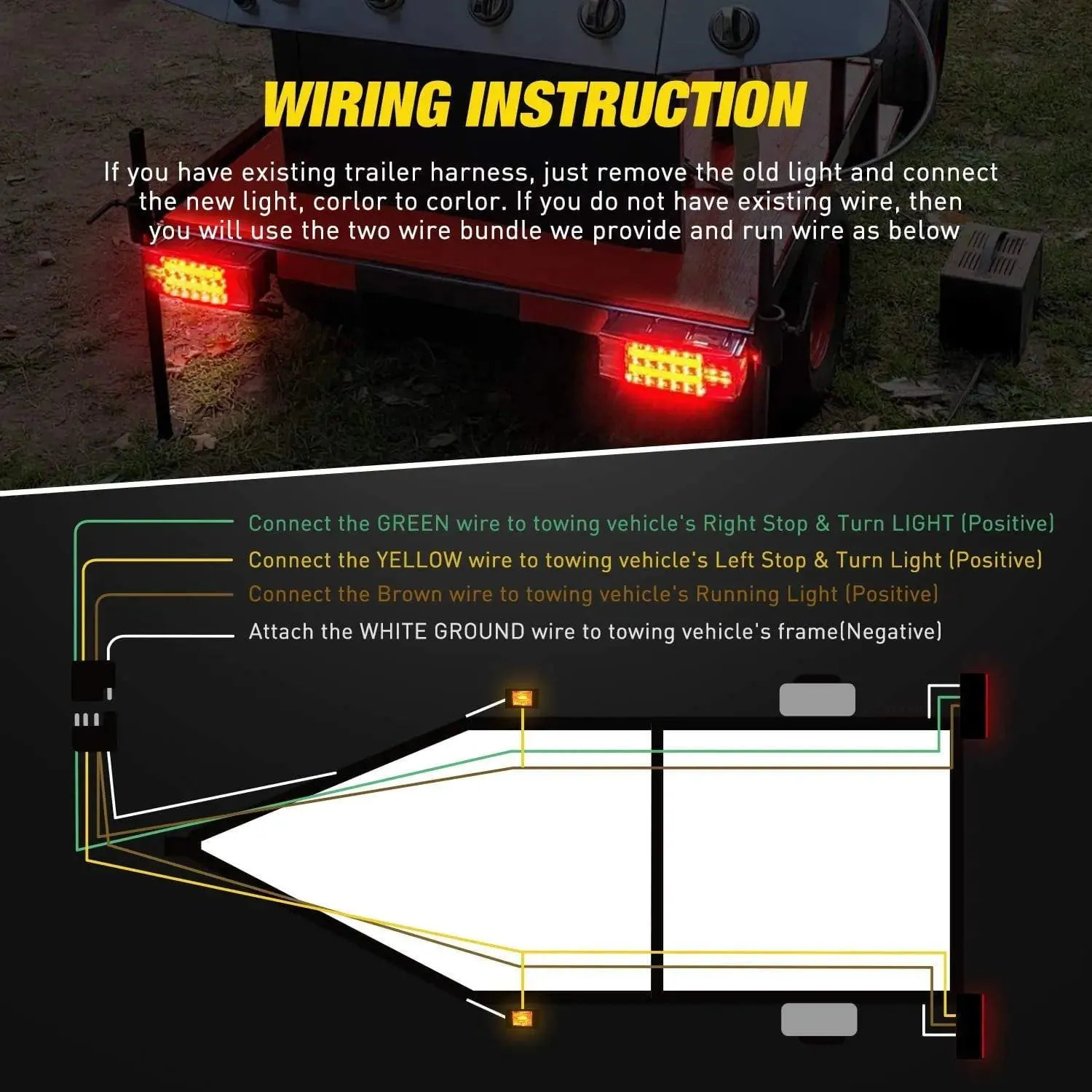

• Easy Installation: Light mounting: stud-mounted design, light with license light on the driver side, the other on the passenger side. Wire connection: color-coded wires, just color to color, and white wire with ring terminals can be grounded at its own mounting stud or to the vehicle frame.

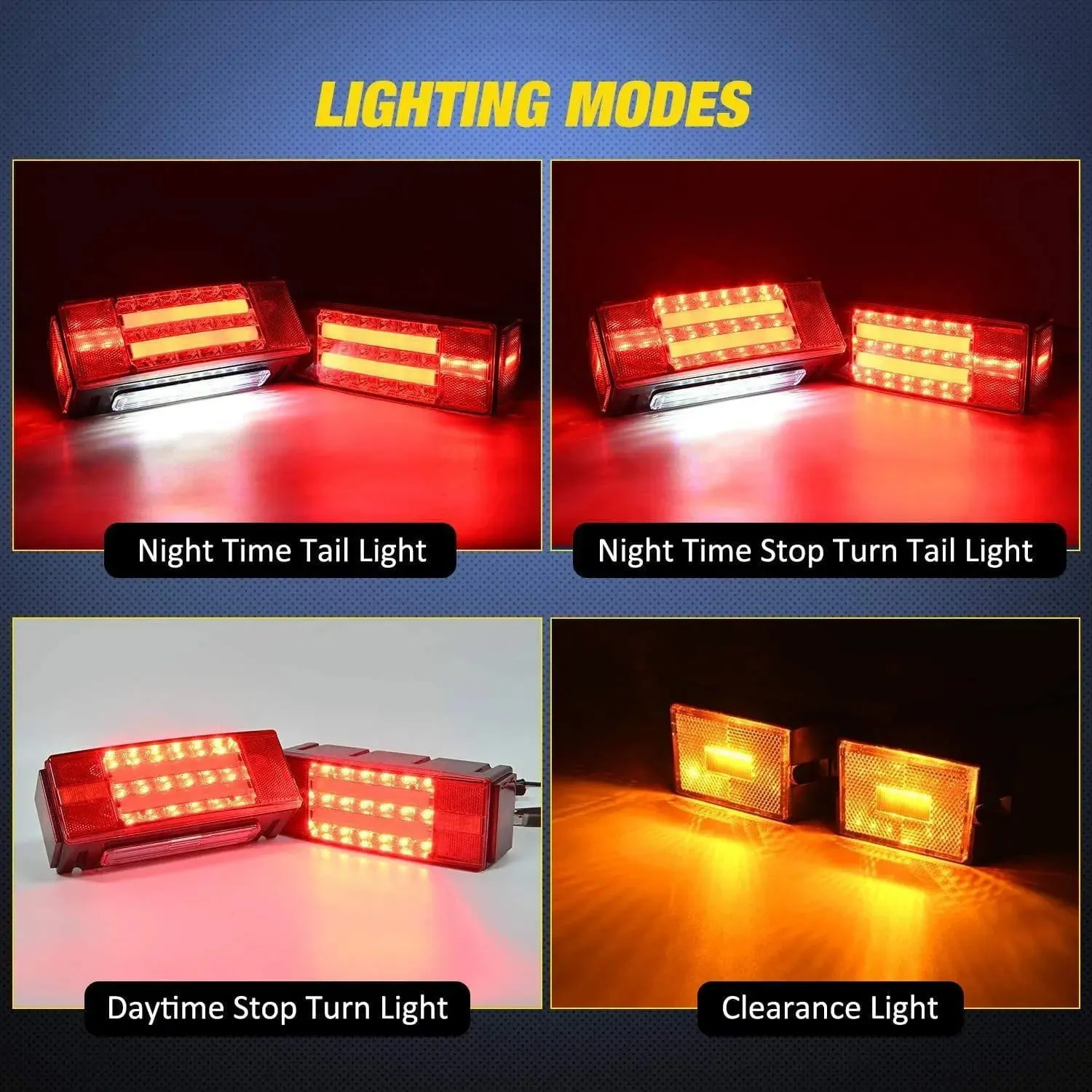

Adopt a new feature of the halo glow strip. Separate running light and stop turn light displaying, add one more LEDs, giving more brightness and reliable visibility for safety. Still combine 7 full functions of stop turn tail light, side marker, side reflector, rear reflector, and license plate light.

• Operating voltage: 12V DC
• Amperage Draw: 0.2A-0.4A
• Waterproof Rate: IP68
• DOT compliant

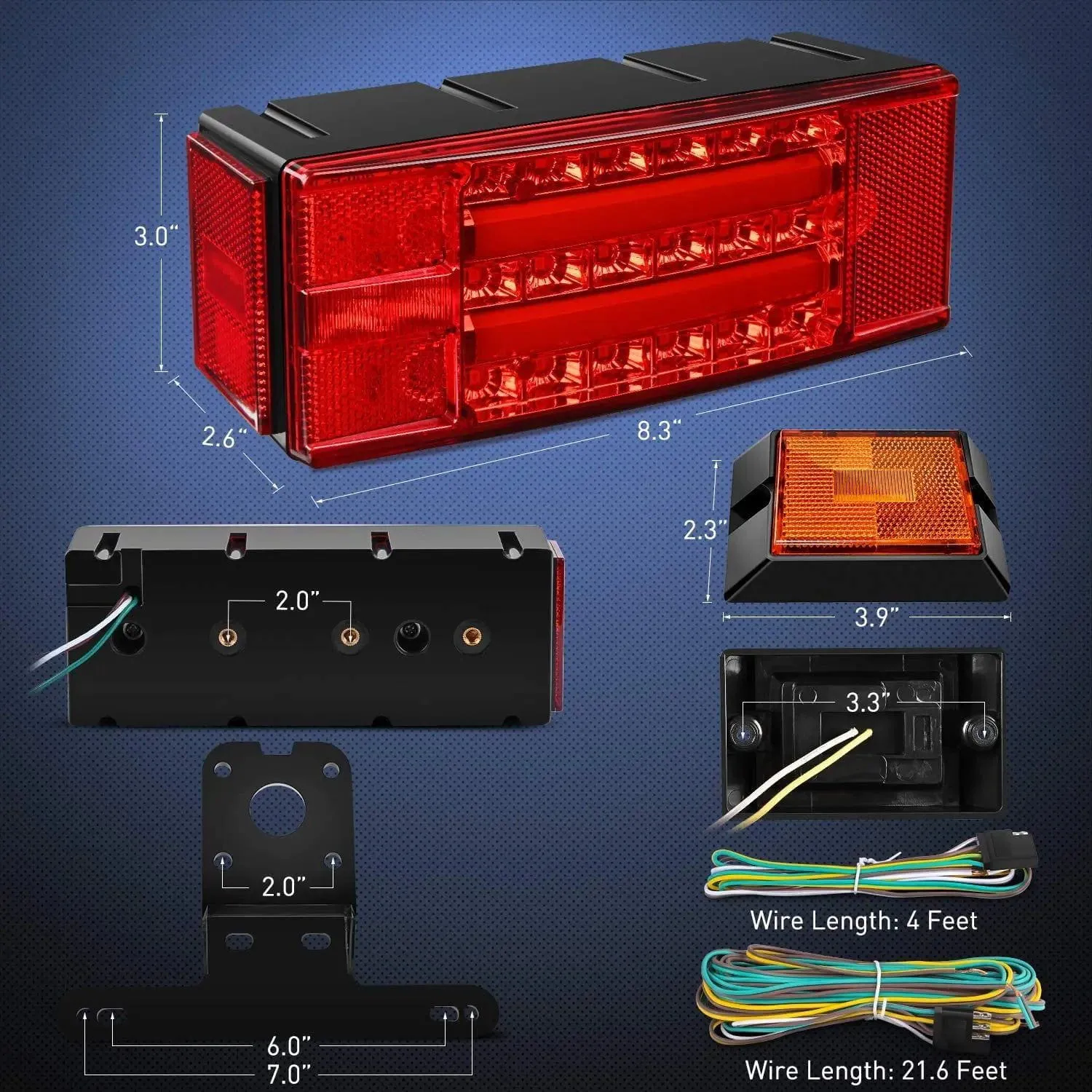

• Rectangular Light dimension: 8.3in x 3.0in x 2.6in
• Amber clearance light dimension: 2.3in x 3.9in
• Rectangular light mounting distance: 2in
• Amber clearance light mounting distance: 3.3in

Key Features

Quality LEDs

Quality and more LEDs, and add on a new design halo glow strip for better brightness and safety

Well Constructed

PC lens is flush-mounted sealed and tightened up by screws at the back, immune to shock and vibration, with no worries of falling off.

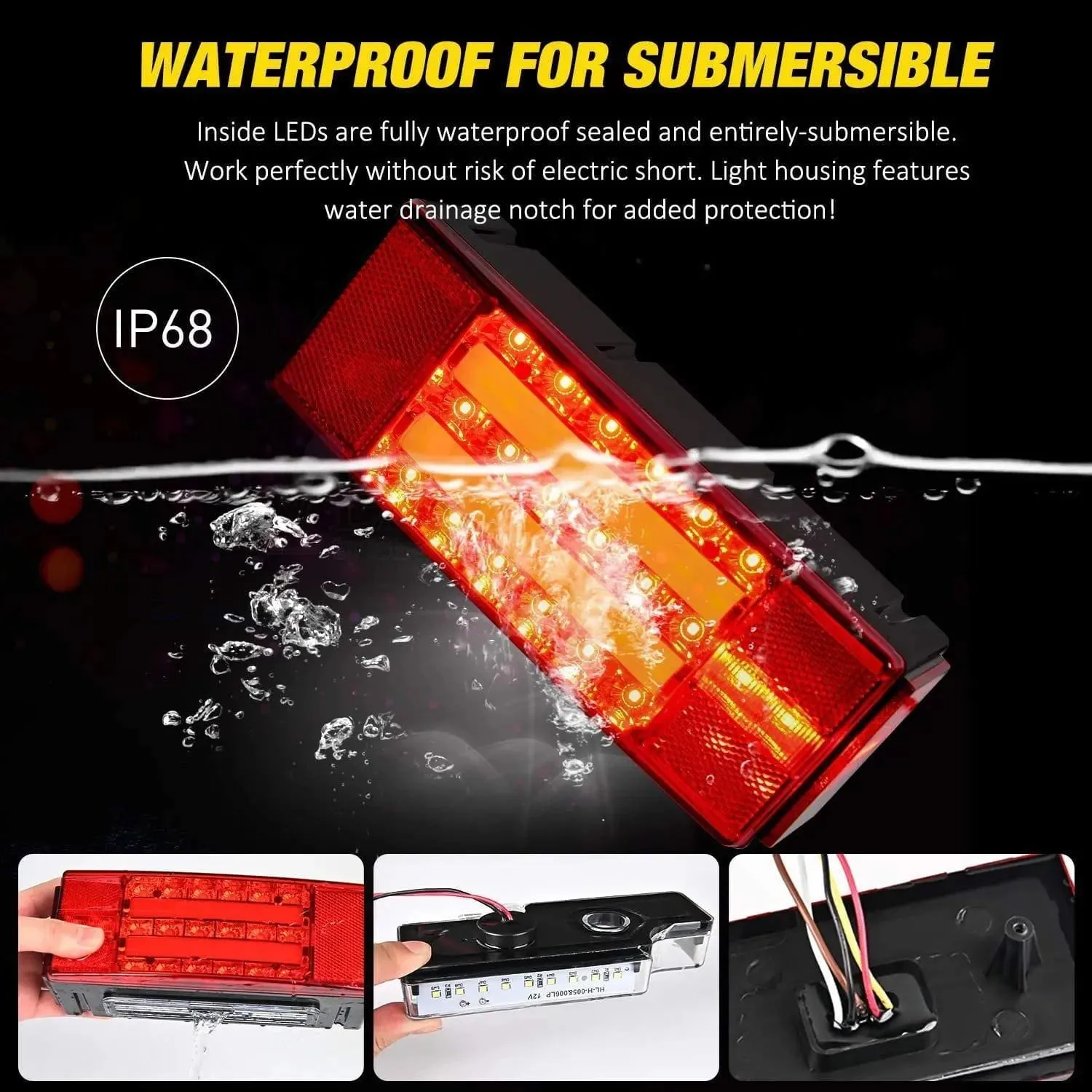

Built-in IP68 Waterproof

Inside electronics and the circuit board is epoxy encased and fully sonically sealed, entirely submersible, trailer light housing also features water drainage.

Convenient Ground

White wires are added to ring terminals for convenient ground at the mounting stud, no need to drill more holes for it.

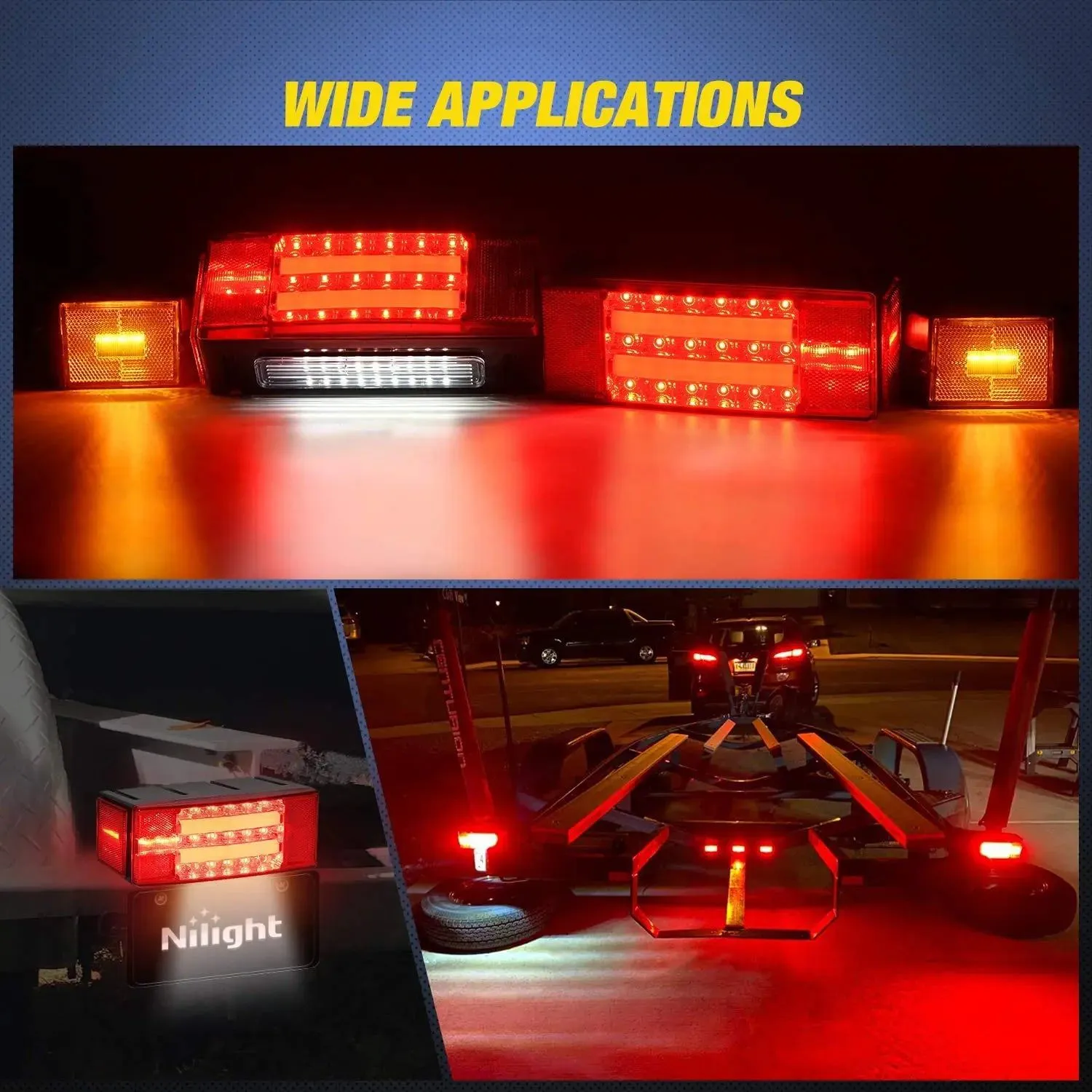

Applications

Perfect for 12V DC vehicles with max width of 80 inches. Fit most trailers, boats, trucks, RV, Marine, Pickups, camper, tractors, etc. bus, lorry, van, caravan, snowmobile utility trailers.
